Good points
- Brand: Ruck
- AC motor
- Standard temperature
- Frequency controlled

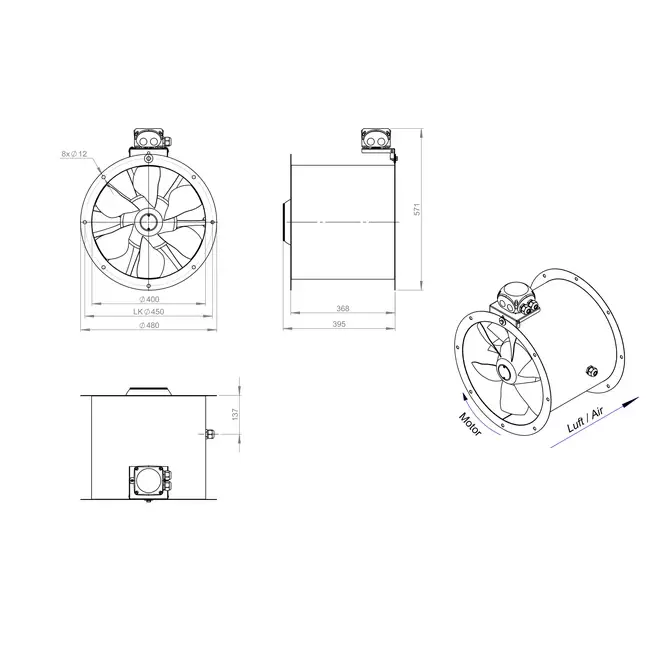

Axial 400 mm Duct Fan – AL 400 D42U 03 CFG
The AL 400 D42U 03 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications. By utilizing the latest numerical design techniques, system efficiency has been significantly improved and the operating range expanded. The adjustable blades provide maximum flexibility, making this fan highly suitable for various ventilation systems in commercial and industrial settings.
Robust Design with Optimized Weight
This fan features a lightweight, optimized design that facilitates installation and simplifies handling. Equipped with an IE3 motor that is 2-stage adjustable via a Dahlander connection, it ensures efficient and energy-saving control. The aerodynamically optimized blades contribute to increased system efficiency. This model is designed for continuous operation at air temperatures up to 60 °C. The fan is supplied without a terminal box but includes a cable for easy connection to an external switch.
Quality Guaranteed
Ruck Ventilatoren GmbH is a leading German company with years of experience. They are market leaders in the field of axial fans. With over 300 dedicated employees, they work daily on innovation and quality. Ruck guarantees reliable products that comply with the latest ERP (Energy Related Product) guidelines.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544320827 |
| Manufacturer's item number | AL 400 D42U 03 CFG |
| Article number | 65170047 |
Specifications
| Category code | 35 |
| Length | 368 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 9235 m³/h |
| Suitable for frequency control | Yes |
| Suitable for transformer control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 400 mm |
