Good points
- Brand: Ruck
- AC motor
- Standard temperature
- Frequency controlled

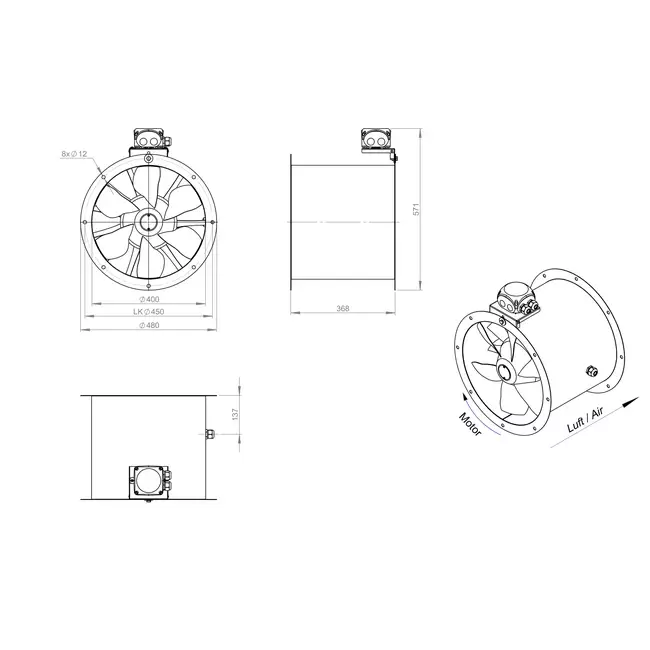

Axial 400 mm Duct Fan – AL 400 D42U 02 CFG
The AL 400 D42U 02 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications. Thanks to the application of the latest numerical design techniques, system efficiency has been optimized and the operating range expanded. The adjustable blades provide maximum flexibility, making this fan suitable for a wide range of applications in commercial buildings and industry.
Robust Design with Optimized Weight
The fan is designed with a robust yet lightweight construction, simplifying installation and making handling more efficient. Equipped with an IE3 motor that is 2-stage adjustable via a Dahlander switching, it allows for flexible and energy-efficient control. The aerodynamically optimized blades contribute to increased system efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C. The fan is supplied without a terminal box, but with a cable for easy connection to an external switch.
Quality Guaranteed
Ruck Ventilatoren GmbH is a leading German company with years of experience. They are market leaders in the field of axial fans. With more than 300 dedicated employees, they work daily on innovative solutions. Ruck ensures consistent product quality and complies with the latest ERP (Energy Related Product) requirements.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544320803 |
| Manufacturer's item number | AL 400 D42U 02 CFG |
| Article number | 65169998 |
Specifications
| Category code | 35 |
| Length | 368 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 6860 m³/h |
| Suitable for frequency control | Yes |
| Suitable for transformer control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 400 mm |
