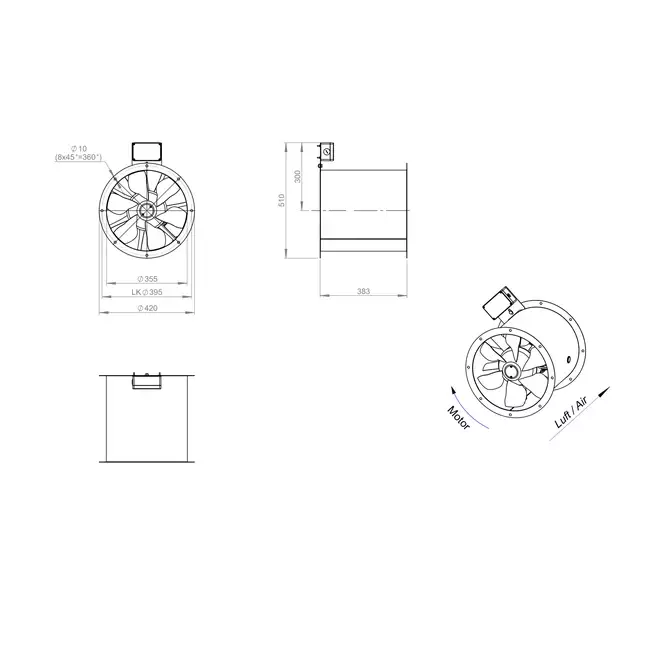

Axial 355 mm Duct Fan Flue Gas F400 – AL 355 D42U F4 02 CFG
The AL 355 D42U F4 02 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications, certified for flue gas discharge according to the F400 standard. Thanks to the application of the latest numerical design techniques, system efficiency has been significantly improved and the operating range expanded. The adjustable blades make this fan suitable for a variety of applications, from everyday ventilation to smoke and heat extraction in case of fire (dual-use).
Robust Design with Optimized Weight
The fan features a robust yet lightweight construction that allows for easy installation and efficient handling. Equipped with an IE3 motor that is 2-stage adjustable via a Dahlander connection, enabling flexible and energy-efficient control. The aerodynamically optimized blades contribute to increased system efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and meets the F400 specification for flue gas ventilation. The fan is supplied without a terminal box, but with a cable for easy connection to an external switch.
Quality Guaranteed
Ruck Ventilatoren GmbH is a leading German company with years of experience. They are market leaders in the field of axial fans. With over 300 dedicated employees, they work daily on new developments and technologies. The company ensures quality assurance to deliver an excellent product in accordance with the latest ERP (Energy Related Product) requirements.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321374 |
| Manufacturer's item number | AL 355 D42U F4 02 CFG |
| Article number | 65170342 |
Specifications
| Category code | 35 |
| Length | 383 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 5690 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 355 mm |
