- Brand: Ruck
- AC motor
- Rookgas F400
- Frequency controlled

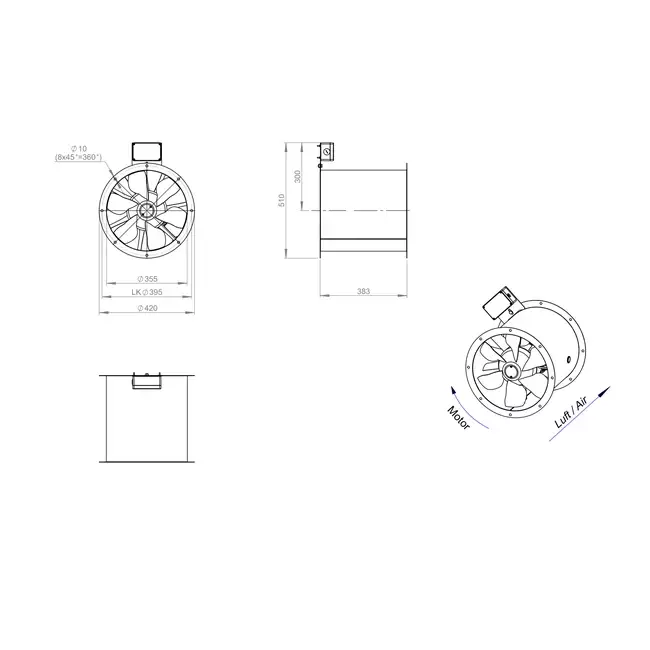

Axial 355 mm Duct Fan Flue Gas F400 – AL 355 D2 F4 01 CFG
The AL 355 D2 F4 01 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications, specifically for flue gas extraction in accordance with the F400 standard. By utilizing the latest numerical design techniques, system efficiency has been significantly improved and the operating range has been expanded. The adjustable blades make this fan suitable for a wide range of applications, including daily ventilation and smoke and heat extraction during a fire (dual-use).
Robust Design with Optimized Weight
The fan features a robust yet lightweight construction that allows for easy installation and efficient handling. Thanks to the optimized design, the weight has been reduced without compromising durability. Equipped with an IEC standard motor suitable for frequency control. The aerodynamically optimized blades contribute to increased system efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and complies with the F400 specification for flue gas ventilation. The fan is supplied without a terminal box but includes a cable for easy connection to an external switch.
Quality Guaranteed
Ruck Ventilatoren GmbH is a leading German company with years of experience. They are market leaders in the field of axial fans. With over 300 dedicated employees, they work daily on new developments and technologies. The company ensures quality assurance to deliver an excellent product in accordance with the latest ERP (Energy Related Product) requirements.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321367 |
| Manufacturer's item number | AL 355 D2 F4 01 CFG |
| Article number | 65170339 |
Specifications
| Category code | 35 |
| Length | 383 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 7190 m³/h |
| Suitable for frequency control | Yes |
| Suitable for transformer control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 355 mm |
