Good points
- Brand: Ruck
- AC motor
- Rookgas F300
- Frequency controlled

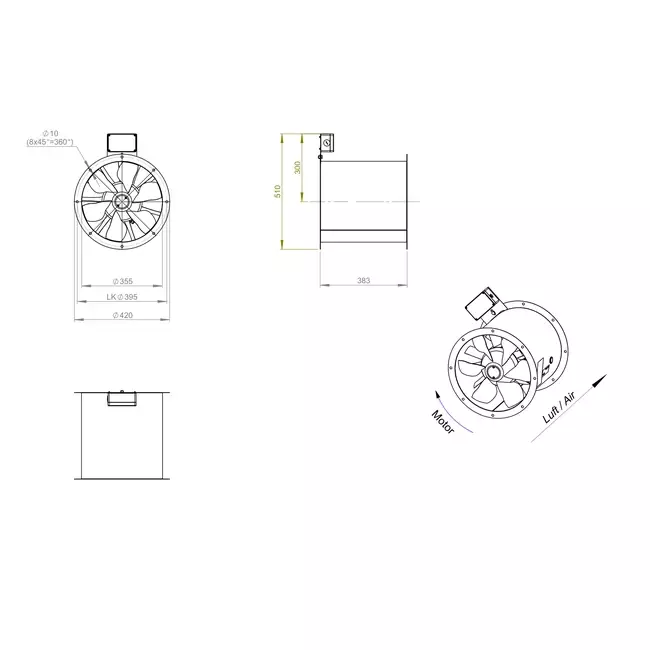

Axial 355 mm Duct Fan Flue Gas F300 – AL 355 D4 F3 01 CFG
The AL 355 D4 F3 01 CFG from Ruck is an innovative and high-efficiency axial fan, specifically designed for flue gas extraction and daily ventilation. Thanks to the application of the latest numerical methods, the design has been optimized for higher system efficiency. With various adjustable blade positions, this fan offers a wide operating range, making it suitable for diverse applications. This model is certified as an F300 flue gas fan and is suitable for continuous use up to 60 °C. Thus, it is an ideal solution for both normal air exchange and smoke heat extraction in case of fire (dual-use).
Robust Design with Optimized Weight
The fan is designed with a robust yet lightweight construction, which simplifies installation and facilitates maintenance. The product design has been optimized, and the weight reduced without compromising on strength and performance. The fan is equipped with an IEC standard motor with energy efficiency class IE3 and is fully compatible with frequency control. The aerodynamically shaped rotor and stator blades ensure maximum efficiency in medium-pressure applications. The AL series is available in diameters up to 1250 mm and is suitable for both industrial and commercial applications.
Quality Guaranteed
Ruck Ventilatoren GmbH is a leading German company with years of experience. They are market leaders in axial fans, including models for flue gas extraction. With over 300 dedicated employees, they work daily on the development of advanced ventilation technology. All products comply with the latest ERP guidelines and the strictest quality standards for fire safety and energy efficiency.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544320339 |
| Manufacturer's item number | AL 355 D4 F3 01 CFG |
| Article number | 65167969 |
Specifications
| Category code | 35 |
| Length | 383 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 5750 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 355 mm |
