Good points
- Brand: Ruck
- AC motor
- Standard temperature
- Frequency controlled

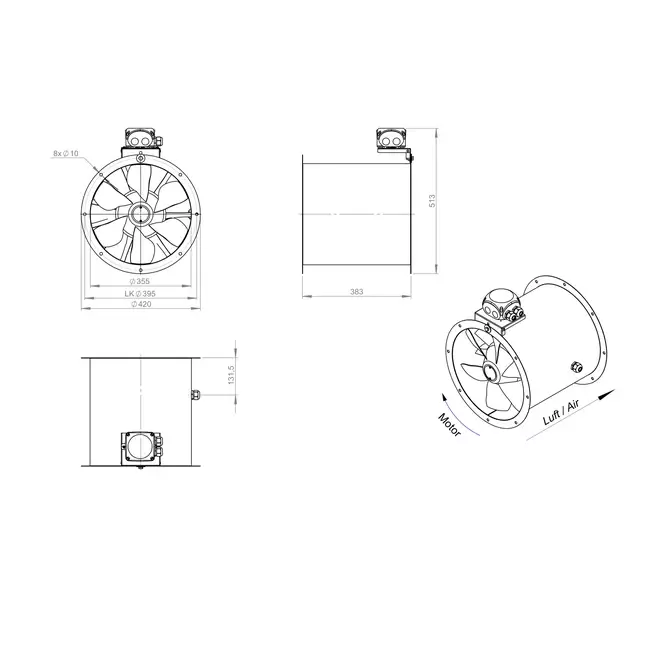

Axial 355 mm Duct Fan – AL 355 D42U 01 CFG
The AL 355 D42U 01 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications. Thanks to the use of the latest numerical design techniques, system efficiency has been significantly improved and the operating range has been expanded. The adjustable blades provide a wide application range, making this fan suitable for various ventilation applications in both commercial and industrial environments.
Robust Design with Optimized Weight
This fan is designed with a lightweight and robust construction, ensuring easy installation and efficient handling. Equipped with a powerful IE3 motor that is 2-stage adjustable via a Dahlander switch, allowing for flexible and energy-saving control. The aerodynamically optimized blades contribute to improved system efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C. The fan is supplied without a terminal box but comes with a cable for easy connection to an external switch.
Quality Guaranteed
Ruck Ventilatoren GmbH is a leading German company with years of experience. They are market leaders in the field of axial fans. With more than 300 dedicated employees, they work daily on new developments and technologies. The company ensures quality assurance to deliver an excellent product in accordance with the latest ERP (Energy Related Product) requirements.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544320780 |
| Manufacturer's item number | AL 355 D42U 01 CFG |
| Article number | 65169980 |
Specifications
| Category code | 35 |
| Length | 383 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 7160 m³/h |
| Suitable for frequency control | Yes |
| Suitable for transformer control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 355 mm |
