Good points
- Brand: Ruck
- AC motor
- Rookgas F400
- Frequency controlled
Axial 315 mm Duct Fan Flue Gas F400 – AL 315 D42U F4 01 CFG
The AL 315 D42U F4 01 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications, certified for flue gas discharge according to the F400 standard. Thanks to the application of the latest numerical design techniques, the system efficiency has been significantly increased, making the fan widely applicable. With adjustable blades, this model is ideal for both daily ventilation and smoke and heat extraction in case of fire (dual-use).
Robust Design with Optimized Weight
This fan is designed with a lightweight yet durable construction that ensures easy installation and efficient handling. The IE3 motor is 2-stage adjustable via a Dahlander connection, contributing to energy-efficient operation. The aerodynamically optimized blades significantly improve system efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and meets the F400 specification for flue gas ventilation. The fan is supplied without a terminal box but comes with a cable for easy connection to an external switch.
Quality Guaranteed
Ruck Ventilatoren GmbH is a leading German company with years of experience. They are market leaders in the field of axial fans. With more than 300 dedicated employees, they work daily on new developments and technologies. The company ensures quality assurance to deliver an excellent product in accordance with the latest ERP (Energy Related Product) requirements.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321336 |
| Manufacturer's item number | AL 315 D42U F4 01 CFG |
| Article number | 65170317 |
Specifications
| Category code | 35 |

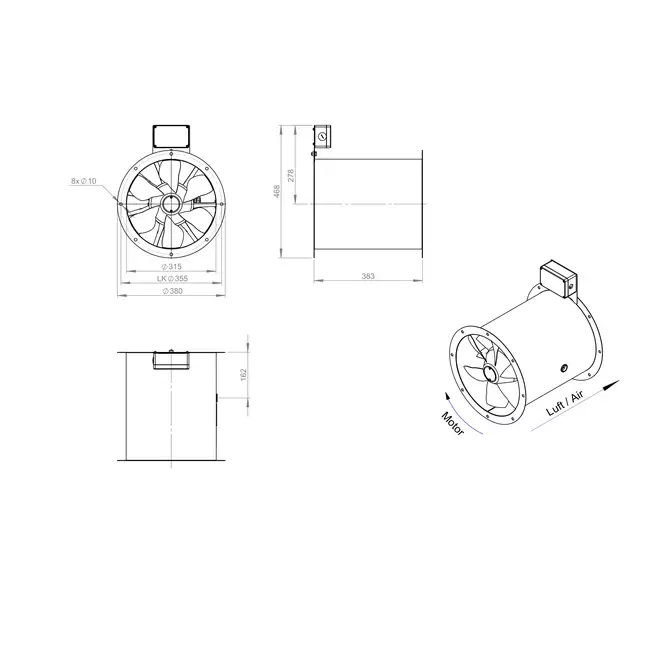

| Length | 383 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 5620 m³/h |
| Suitable for frequency control | Yes |
| Suitable for transformer control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 315 mm |
