Good points
- Brand: Ruck
- AC motor
- Rookgas F400
- Frequency controlled

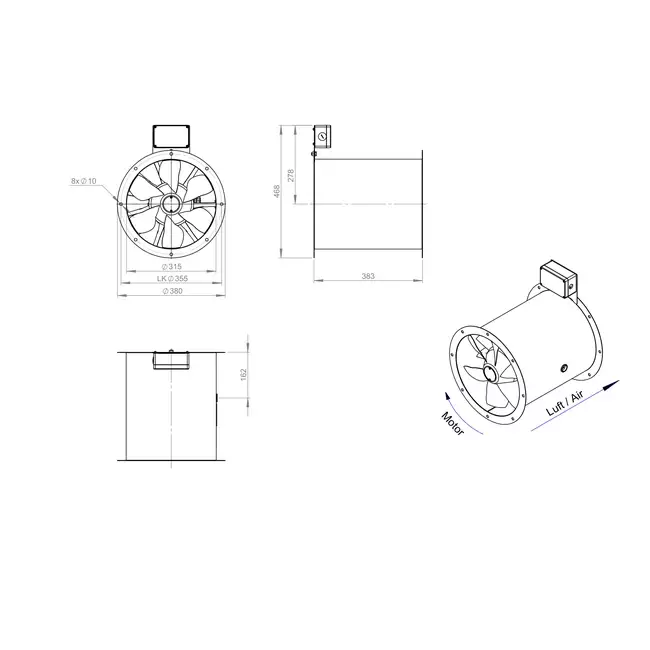

Axial 315 mm Duct Fan Flue Gas F400 – AL 315 D2 F4 03 CFG
The AL 315 D2 F4 03 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications, certified for flue gas discharge according to the F400 standard. By utilizing the latest numerical design techniques, system efficiency has been optimized and the operating range significantly expanded. Thanks to the adjustable blades, this fan is versatile and suitable for both daily ventilation and smoke and heat extraction in case of fire (dual-use).
Robust Design with Optimized Weight
This fan features an optimized, lightweight design that ensures easy installation and efficient handling. The construction combines durability with user-friendliness. Equipped with an IEC standard motor suitable for frequency control. The aerodynamically optimized blades contribute to increased system efficiency. The fan is suitable for continuous operation at air temperatures up to 60 °C and complies with the F400 specification for flue gas ventilation. The model is supplied without a terminal box, but with a cable for easy connection of an external switch.
Quality Guaranteed
Ruck Ventilatoren GmbH is a leading German company with years of experience. They are market leaders in the field of axial fans. With over 300 dedicated employees, they work daily on new developments and technologies. The company ensures quality assurance to deliver an excellent product in accordance with the latest ERP (Energy Related Product) requirements.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321312 |
| Manufacturer's item number | AL 315 D2 F4 03 CFG |
| Article number | 65170308 |
Specifications
| Category code | 35 |
| Length | 383 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 6155 m³/h |
| Suitable for frequency control | Yes |
| Suitable for transformer control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 315 mm |
