Axial 315 mm Duct Fan Flue Gas F400 – AL 315 D2 F4 01 CFG
The AL 315 D2 F4 01 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications and certified for flue gas discharge according to the F400 standard. Thanks to the application of the latest numerical design techniques, the system efficiency has been significantly increased and the operating range expanded. With adjustable blades, this fan is versatile and suitable for both daily ventilation and smoke and heat extraction in emergency situations (dual-use).
Robust Design with Optimized Weight
The lightweight yet robust design makes the fan easy to install and handle. The optimized product design has reduced the weight without compromising durability. Equipped with an IEC standard motor suitable for frequency control. The aerodynamically optimized blades contribute to increased system efficiency. This fan is designed for continuous operation at air temperatures up to 60 °C and meets the F400 specification for flue gas ventilation. Delivered without a terminal box, but equipped with a cable for easy connection to an external switch.
Quality Guaranteed
Ruck Ventilatoren GmbH is a leading German company with years of experience. They are market leaders in the field of axial fans. With over 300 dedicated employees, they work daily on new developments and technologies. The company ensures quality assurance to deliver an excellent product in accordance with the latest ERP (Energy Related Product) requirements.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544321305 |
| Manufacturer's item number | AL 315 D2 F4 01 CFG |
| Article number | 65170299 |
Specifications
| Category code | 35 |

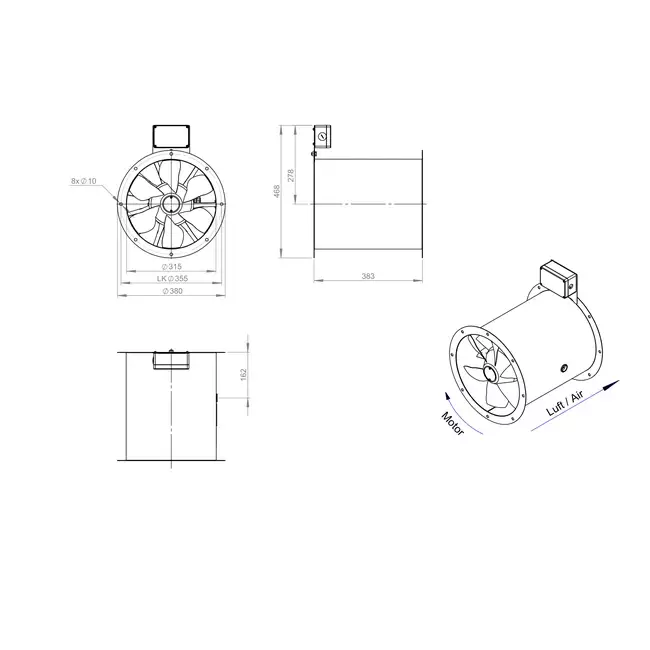

| Length | 383 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 5620 m³/h |
| Suitable for frequency control | Yes |
| Suitable for transformer control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 315 mm |
