Good points
- Brand: Ruck
- AC motor
- Rookgas F300
- Frequency controlled

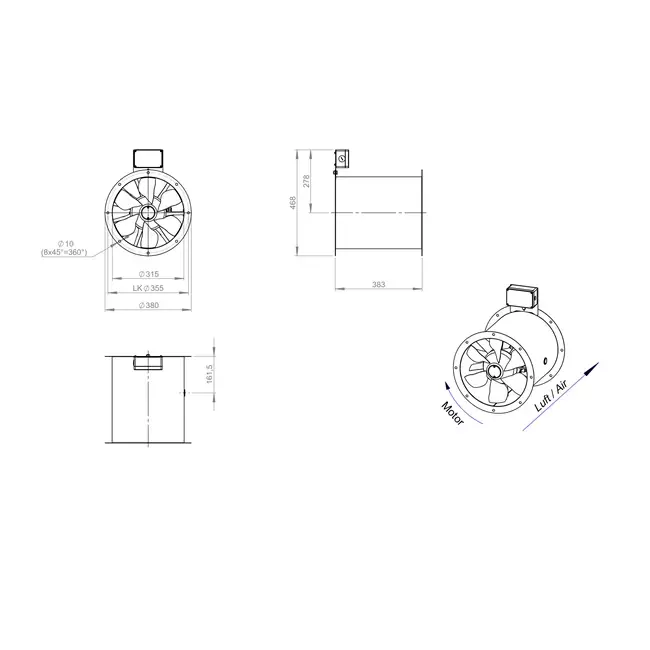

Axial 315 mm Duct Fan Flue Gas F300 – AL 315 D42U F3 01 CFG
The AL 315 D42U F3 01 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications, specifically for flue gas extraction in accordance with the F300 standard. Thanks to the application of the latest numerical design techniques, the system efficiency has been significantly improved and the operating range has been considerably widened. With adjustable blades, this fan offers maximum flexibility for both daily ventilation and flue gas and heat extraction during a fire (dual-use).
Robust Design with Optimized Weight
The fan features a robust yet lightweight construction, ensuring easy installation and efficient handling. Equipped with an IE3 motor that is 2-stage adjustable via a Dahlander connection, it provides optimal control and energy savings. The aerodynamically optimized blades contribute to increased system efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C and is certified according to the F300 standard for flue gas ventilation. The fan is supplied without a terminal box but includes a cable for easy connection to an external switch.
Quality Guaranteed
Ruck Ventilatoren GmbH is a leading German company with years of experience. They are market leaders in the field of axial fans. With over 300 dedicated employees, they work daily on new developments and technologies. The company ensures quality assurance to deliver an excellent product that meets the latest ERP (Energy Related Product) requirements.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544322425 |
| Manufacturer's item number | AL 315 D42U F3 01 CFG |
| Article number | 65171090 |
Specifications
| Category code | 35 |
| Length | 383 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 5620 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 315 mm |
