Good points
- Brand: Ruck
- AC motor
- Standard temperature
- Frequency controlled

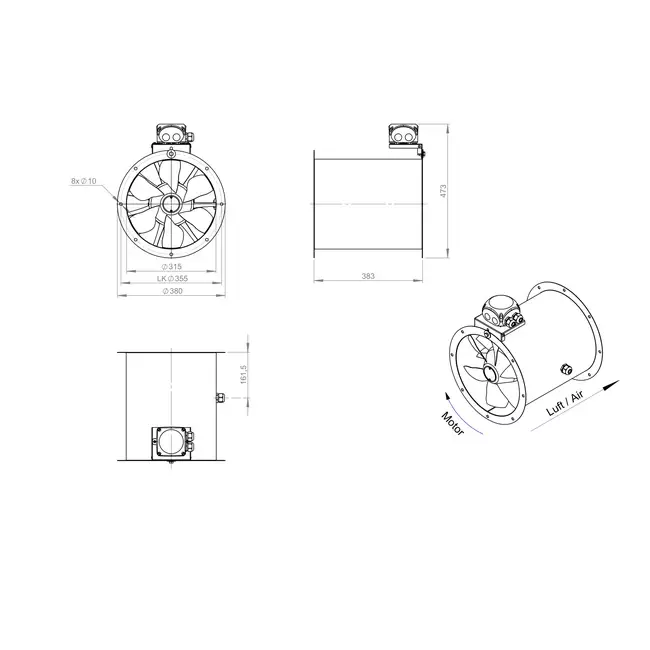

Axial 315 mm Duct Fan – AL 315 D42U 01 CFG
The AL 315 D42U 01 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications. Thanks to the application of the latest numerical design techniques, the efficiency has been increased and the operating range expanded. The adjustable blades allow for versatile use in various ventilation applications. This fan is ideal for situations where reliable air displacement and energy savings need to be combined.
Robust Design with Optimized Weight
The optimized, lightweight design of this fan makes installation straightforward and handling efficient. The fan is equipped with an IE3 motor and is 2-stage adjustable via a Dahlander switching, providing flexible control and energy savings. The aerodynamically optimized blades significantly improve system efficiency. This model is suitable for continuous operation at air temperatures up to 60 °C. The fan is supplied without a terminal box, but with a cable for easy connection to an external switch.
Quality Guaranteed
Ruck Ventilatoren GmbH is a leading German company with years of experience. They are market leaders in the field of axial fans. With over 300 dedicated employees, they work daily on new developments and technologies. The company ensures quality assurance to deliver an excellent product in accordance with the latest ERP (Energy Related Product) requirements.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544320735 |
| Manufacturer's item number | AL 315 D42U 01 CFG |
| Article number | 65169911 |
Specifications
| Category code | 35 |
| Length | 383 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 5620 m³/h |
| Suitable for frequency control | Yes |
| Suitable for transformer control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 315 mm |
