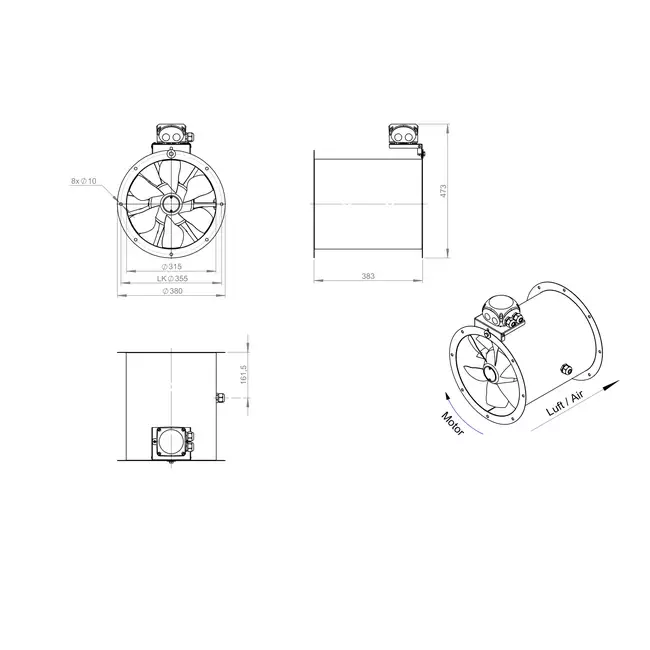

Axial 315 mm Duct Fan – AL 315 D2 03 CFG
The AL 315 D2 03 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications. Thanks to the use of the latest numerical design techniques, both system efficiency and operating range have been significantly improved. The adjustable blades allow for flexible use in various ventilation applications. This compact fan is ideal for use in smaller spaces where powerful air displacement is still desired.
Robust Design with Optimized Weight
The smart, lightweight design ensures easy installation and handling. The optimized product design has reduced the weight without compromising on strength and durability. The fan is equipped with an IEC standard motor suitable for frequency control. The aerodynamically optimized blades contribute to increased system efficiency. This model is designed for continuous operation at air temperatures up to 60 °C. The fan is supplied without a terminal box but comes with a cable for easy connection to an external switch.
Quality Guaranteed
Ruck Ventilatoren GmbH is a leading German company with years of experience. They are market leaders in the field of axial fans. With over 300 dedicated employees, they work daily on new developments and technologies. The company ensures quality assurance to deliver an excellent product that meets the latest ERP (Energy Related Product) requirements.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Axial duct fan |
| GTIN | 8719544320711 |
| Manufacturer's item number | AL 315 D2 03 CFG |
| Article number | 65169904 |
Specifications
| Category code | 35 |
| Length | 383 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP55 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 6155 m³/h |
| Suitable for frequency control | Yes |
| Suitable for transformer control | Yes |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 315 mm |
