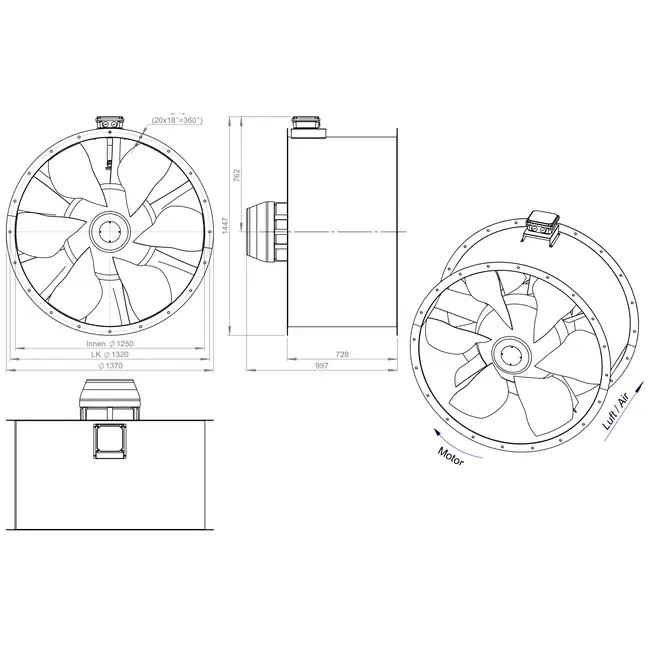

Axial 1250 mm Duct Fan Flue Gas F400 – AL 1250 D6 F4 02 CFG
The AL 1250 D6 F4 02 CFG from Ruck is an innovative, energy-efficient axial fan designed for medium pressure applications, suitable for flue gas discharge in accordance with the F400 standard. By utilizing the latest numerical techniques, system efficiency has been enhanced and the operational range has been expanded. The adjustable blades provide optimal flexibility, making this fan ideal for both daily ventilation and smoke and heat extraction during a fire (dual-use).
Robust Design with Optimized Weight
The fan features a sturdy yet lightweight design, simplifying installation and improving handling. Thanks to an optimized product design, the weight has been reduced without compromising robustness. Equipped with an IEC standard motor that can be frequency controlled. The aerodynamically optimized blades contribute to increased system efficiency. This model is designed for continuous use at air temperatures up to 60 °C and also meets the F400 specification for flue gas discharge. Delivered without a terminal box, but with a cable for easy connection of an external switch.
Quality Guaranteed
Ruck Ventilatoren GmbH is a leading German company with years of experience. They are market leaders in the field of axial fans. With over 300 dedicated employees, they work daily on new developments and technologies. The company ensures quality assurance to deliver an excellent product in accordance with the latest ERP (Energy Related Product) requirements.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544322135 |
| Manufacturer's item number | AL 1250 D6 F4 02 CFG |
| Article number | 65170852 |
Specifications
| Category code | 35 |
| Length | 728 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 100464 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 1250 mm |
