- Brand: Ruck
- AC motor
- Rookgas F300
- Frequency controlled

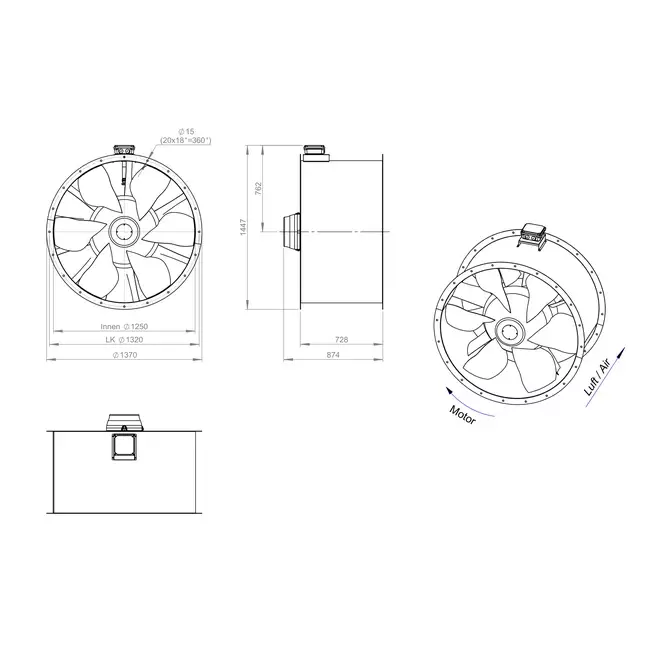

Axial 1250 mm Duct Fan Flue Gas F300 – AL 1250 D6 F3 07 CFG
The AL 1250 D6 F3 07 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications, certified for flue gas discharge according to the F300 standard. By utilizing the latest numerical design techniques, both efficiency and operating range have been optimized. The adjustable blades allow for versatile applications, making this fan suitable for various situations, including dual-use scenarios where both ventilation and flue gas discharge are required.
Robust Design with Optimized Weight
Thanks to its thoughtful, lightweight design, the fan is easy to install and handle. The optimized design results in a lower weight without compromising durability. The fan is equipped with an IEC standard motor and is suitable for frequency control. Aerodynamically optimized blades significantly increase system efficiency. This model is designed for continuous operation at temperatures up to 60 °C and meets the requirements for flue gas ventilation according to the F300 standard. The fan is supplied without a terminal box and comes with a cable for easy connection to an external switch.
Quality Guaranteed
Ruck Ventilatoren GmbH is a leading German company with years of experience. They are market leaders in the field of axial fans. With over 300 dedicated employees, they work daily on new developments and technologies. The company ensures quality assurance to deliver an excellent product in accordance with the latest ERP (Energy Related Product) requirements.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544322098 |
| Manufacturer's item number | AL 1250 D6 F3 07 CFG |
| Article number | 65170837 |
Specifications
| Category code | 35 |
| Length | 728 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 92590 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 1250 mm |
