- Brand: Ruck
- AC motor
- Rookgas F300
- Frequency controlled

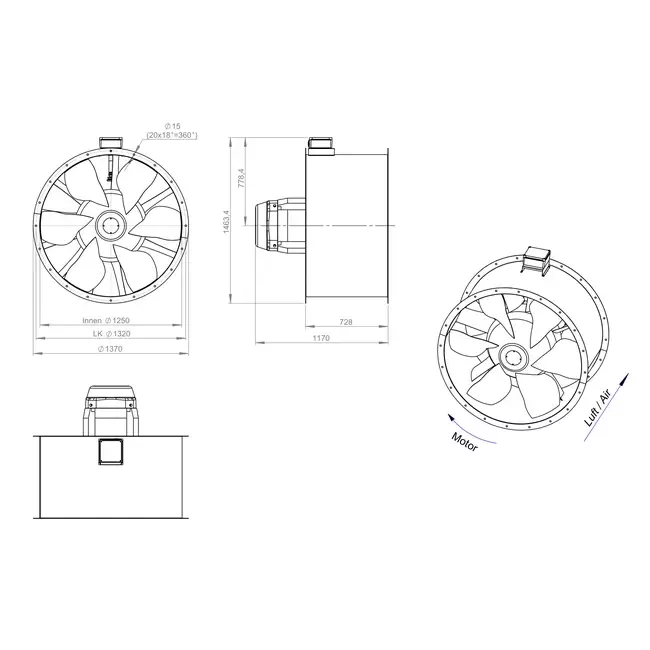

Axial 1250 mm Duct Fan Flue Gas F300 – AL 1250 D6 F3 05 CFG
The AL 1250 D6 F3 05 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications and certified for flue gas discharge according to the F300 standard. Thanks to the application of the latest numerical design techniques, system efficiency has been improved and the operating range significantly widened. The adjustable blades allow for optimal tuning of the fan to various situations. This fan is suitable for both daily ventilation and smoke and heat extraction in case of fire.
Robust Design with Optimized Weight
The fan features a robust yet lightweight construction, ensuring easy installation and efficient handling. The optimized design has reduced the weight without compromising durability. Equipped with an IEC standard motor, suitable for frequency control. The aerodynamically optimized blades contribute to increased system efficiency. The fan is designed for dual-use applications and is suitable for continuous operation at air temperatures up to 60 °C. In case of fire, this fan operates reliably according to the F300 specification. This model is supplied without a terminal box, but with a cable for easy connection of an external switch.
Quality Guaranteed
Ruck Ventilatoren GmbH is a leading German company with years of experience. They are market leaders in the field of axial fans. With over 300 dedicated employees, they work daily on new developments and technologies. The company ensures quality assurance to deliver an excellent product in accordance with the latest ERP (Energy Related Product) requirements.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544322104 |
| Manufacturer's item number | AL 1250 D6 F3 05 CFG |
| Article number | 65170842 |
Specifications
| Category code | 35 |
| Length | 728 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 126735 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 1250 mm |
