Axial 1000 mm Duct Fan Flue Gas F400 – AL 1000 D84U F4 03 CFG
The AL 1000 D84U F4 03 CFG from Ruck is an innovative and powerful axial fan, specifically developed for flue gas extraction and daily ventilation. By utilizing the latest numerical methods, the design has been optimized for high system efficiency. Thanks to adjustable blade angles, this fan has a wide operating range and is suitable for various applications. This model is F400 certified and suitable for continuous use up to 60 °C, making it an excellent dual-use fan: for both regular air exchange and flue gas heat extraction during a fire.
Robust Design with Optimized Weight
The AL 1000 D84U F4 03 CFG is designed with a sturdy yet lightweight construction that makes installation and maintenance easy. The product design focuses on weight reduction without compromising performance or durability. This fan is equipped with an energy-efficient IE3 motor that can be controlled in two speed stages via a Dahlander switching method. This allows for flexible and economical operation tailored to your specific ventilation needs. The aerodynamically shaped rotor and stator blades ensure high efficiency, even in medium pressure applications.
Quality Guaranteed
Ruck Ventilatoren GmbH is a renowned German manufacturer known for its high-quality ventilation solutions. With over 300 employees, they develop fans daily that meet the strictest standards for fire safety and energy efficiency. The AL 1000 D84U F4 03 CFG complies with current ERP guidelines and offers reliable performance, even in critical situations.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544322722 |
| Manufacturer's item number | AL 1000 D84U F4 03 CFG |
| Article number | 65171285 |

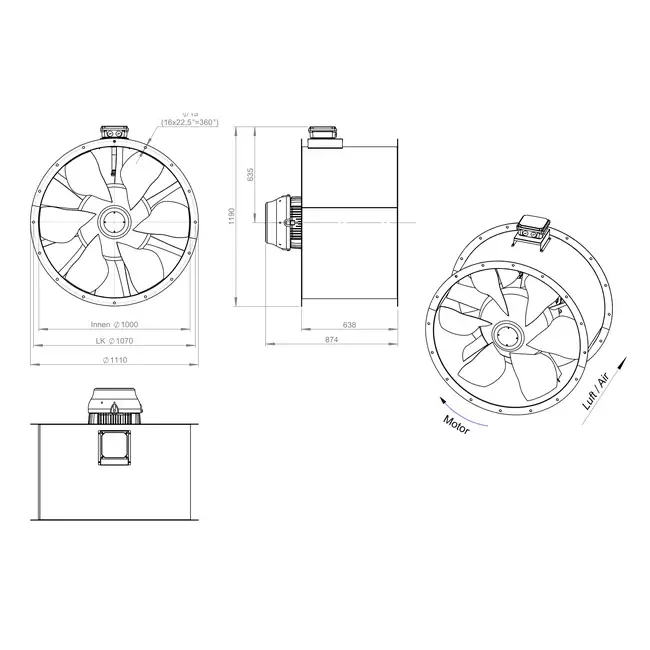

Specifications
| Category code | 35 |
| Length | 638 mm |
| Connection | Insert end |
| Width | 1110 mm |
| Height | 1110 mm |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 72895 m³/h |
| Power consumption | 21107 kW |
| Suitable for frequency control | Yes |
| Suitable for transformer control | No |
| Suitable for electronic control | No |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter, suction | 1000 mm |
| Duct diameter, exhaust | 1000 mm |
