Axial 1000 mm Duct Fan Flue Gas F400 – AL 1000 D84U F4 02 CFG

The AL 1000 D84U F4 02 CFG from Ruck is a powerful and energy-efficient axial fan, developed for flue gas extraction and daily ventilation. Thanks to the application of the latest numerical calculation methods, the design has been optimized for maximum system efficiency. With adjustable blade angles, this fan offers a wide operating range, making it suitable for various applications. The model is certified as an F400 flue gas fan and is suitable for continuous operation up to 60 °C. This makes it perfect as a dual-use solution: for normal air exchange and flue gas heat extraction during a fire.

Robust Design with Optimized Weight

The AL 1000 D84U F4 02 CFG is designed with a robust yet lightweight construction, ensuring easy installation and efficient maintenance. The optimized design results in a lower product mass without compromising strength or performance. The fan is equipped with an energy-efficient IE3 motor that can be switched between two speed settings via a Dahlander connection. This allows for flexible and economical operation tailored to your needs. Thanks to aerodynamically shaped rotor and stator blades, this fan delivers excellent performance in medium-pressure applications.

Quality Guaranteed

Ruck Ventilatoren GmbH is a leading German company known for its high-quality ventilation solutions for many years. With over 300 employees, they develop reliable fans that meet the strictest standards for fire safety and energy efficiency. The AL 1000 D84U F4 02 CFG also complies with current ERP guidelines and is designed for top performance under heavy conditions.

More Information

Brand	Ruck ventilatoren GmbH
Category	Flue Gas Axial Fan
GTIN	8719544322715
Manufacturer's item number	AL 1000 D84U F4 02 CFG
Article number	65171282

Specifications

Category code	35

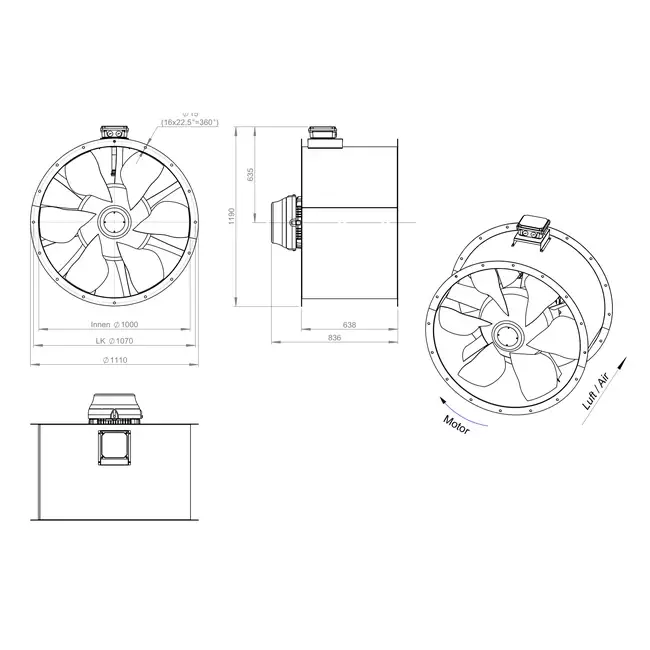

Length	638 mm
Connection	Insert end
Width	1110 mm
Height	1110 mm
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	63390 m³/h
Power consumption	18240 kW
Suitable for frequency control	Yes
Suitable for transformer control	No
Suitable for electronic control	No
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter, suction	1000 mm
Duct diameter, exhaust	1000 mm
