Good points

Brand: Ruck
AC motor
Rookgas F400
Frequency controlled

Axial 1000 mm Duct Fan Flue Gas F400 – AL 1000 D84U F4 01 CFG

The AL 1000 D84U F4 01 CFG from Ruck is an innovative and high-efficiency axial fan, designed for both flue gas extraction and daily ventilation. Utilizing advanced numerical simulation techniques, this fan is optimized for maximum system efficiency. With adjustable blade angles, this model has a wide operating range, making it suitable for various applications. The fan is certified as an F400 flue gas fan and is suitable for continuous operation up to 60 °C, making it an ideal dual-use solution: for normal air exchange and flue gas heat extraction during a fire.

Robust Design with Optimized Weight

The AL 1000 D84U F4 01 CFG is designed with a robust yet lightweight construction. This makes installation straightforward and maintenance practical. Thanks to the optimized design, the weight has been reduced without compromising performance or reliability. This fan is equipped with an IE3 motor with two-speed control via a Dahlander switch, ensuring flexible and energy-efficient operation. The aerodynamically shaped rotor and stator blades contribute to high efficiency in medium-pressure applications. This model is particularly suitable for larger commercial and industrial applications where flue gas extraction and ventilation are essential.

Quality Guaranteed

Ruck Ventilatoren GmbH is a renowned German manufacturer with years of experience in ventilation technology. With over 300 employees, they develop high-quality solutions for fire safety and energy efficiency on a daily basis. All products, including the AL 1000 D84U F4 01 CFG, comply with current ERP guidelines and the strictest quality standards. This ensures reliable performance, even under extreme conditions.

More Information

Brand	Ruck ventilatoren GmbH
Category	Flue Gas Axial Fan
GTIN	8719544322708
Manufacturer's item number	AL 1000 D84U F4 01 CFG
Article number	65171279

Specifications

Category code	35

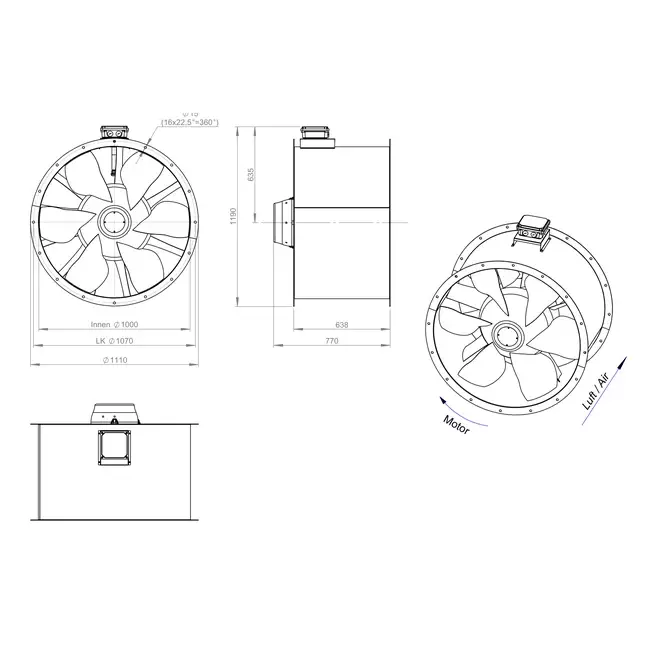

Length	638 mm
Connection	Insert end
Width	1110 mm
Height	1110 mm
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	53610 m³/h
Power consumption	14864 kW
Suitable for frequency control	Yes
Suitable for transformer control	No
Suitable for electronic control	No
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter, suction	1000 mm
Duct diameter, exhaust	1000 mm
