Good points
- Brand: Ruck
- AC motor
- Rookgas F400
- Frequency controlled

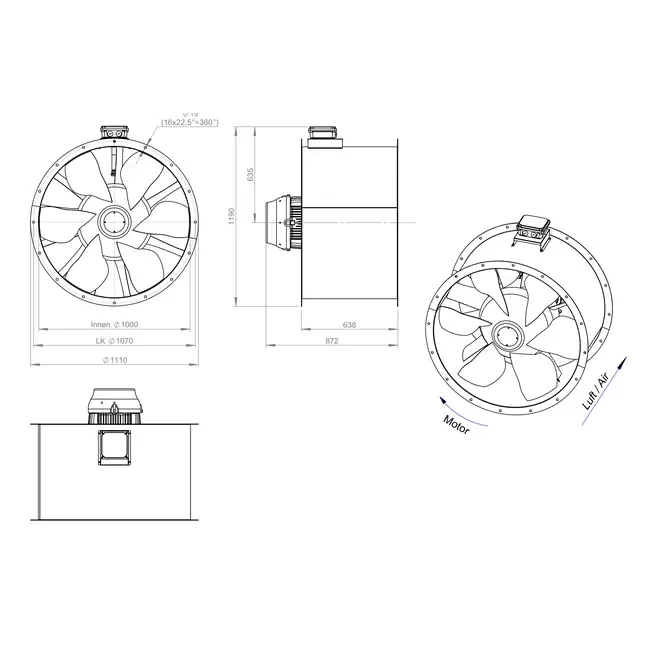

Axial 1000 mm Duct Fan Flue Gas F400 – AL 1000 D4 F4 04 CFG
The AL 1000 D4 F4 04 CFG from Ruck is an innovative, high-efficiency axial fan designed for medium pressure applications, specifically for flue gas extraction (F400). Thanks to advanced numerical design techniques, both the efficiency and operating range have been significantly increased. By utilizing various blade settings, the fan can be flexibly adjusted for a wide range of applications. This fan is ideal for use in installations where both normal ventilation and flue gas extraction are required, such as parking garages, industrial buildings, and emergency ventilation systems.
Robust Design with Optimized Weight
The axial fan features a robust yet lightweight construction, ensuring easy installation and efficient handling. With an optimized product design, the weight has been reduced without compromising durability. The fan is equipped with an IEC standard motor and is suitable for frequency control. The aerodynamically optimized blades contribute to increased system efficiency. This model is certified for flue gas extraction up to 400 °C for 120 minutes (F400) and is also suitable for continuous operation at air temperatures up to 60 °C.
Quality Guaranteed
Ruck Ventilatoren GmbH is a leading German company with years of experience. They are market leaders in the field of axial fans. With over 300 dedicated employees, they work daily on new developments and technologies. The company ensures quality assurance to deliver an excellent product in accordance with the latest ERP (Energy Related Product) requirements and European fire safety standards.
More Information
| Brand | Ruck ventilatoren GmbH |
| Category | Flue Gas Axial Fan |
| GTIN | 8719544322050 |
| Manufacturer's item number | AL 1000 D4 F4 04 CFG |
| Article number | 65170808 |
Specifications
| Category code | 35 |
| Length | 638 mm |
| Connection | Insert end |
| Housing material | Steel |
| Electrical connection | Terminals |
| Degree of protection (IP) | IPX4 |
| Connection voltage | 400 V |
| With thermal overload protection | Yes |
| Indirect drive | No |
| Air volume, unloaded | 92065 m³/h |
| Suitable for frequency control | Yes |
| Pole-reversible | No |
| Suitable for transformer control | No |
| Suitable for electronic control | Yes |
| Max. air temperature | 60 °C |
| Suitable for low-current control | No |
| Direct-current motor | No |
| 2-speed motor | No |
| Duct diameter | 1000 mm |
