Good points

Brand: Ruck
AC motor
Rookgas F300
Frequency controlled

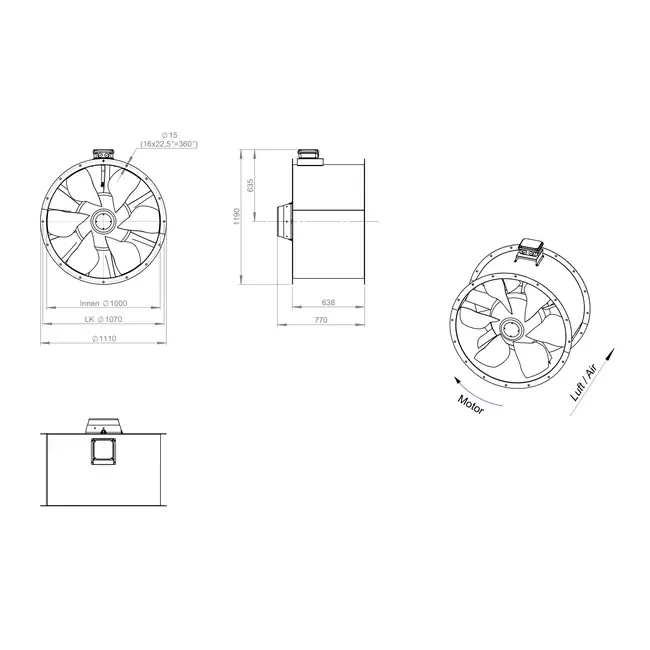

Axial 1000 mm Duct Fan Flue Gas F300 – AL 1000 D84U F3 01 CFG

The AL 1000 D84U F3 01 CFG from Ruck is an innovative and high-efficiency axial fan, specifically developed for flue gas extraction and daily ventilation. Thanks to the use of advanced numerical methods, the design of this fan has been optimized for maximum system efficiency. With adjustable blade angles, the model offers a wide operating range, making it suitable for various applications. This fan is certified as an F300 flue gas fan and is suitable for continuous operation up to 60 °C, making it an excellent dual-use solution: for regular air exchange and flue gas heat extraction in case of fire.

Robust Design with Optimized Weight

The AL 1000 D84U F3 01 CFG is designed with a sturdy yet lightweight construction that simplifies installation and maintenance. The product design focuses on weight reduction without compromising durability or performance. The fan is equipped with an IE3 motor featuring two-speed control via a Dahlander connection, allowing easy switching between different power levels. The specially shaped rotor and stator blades ensure high efficiency in medium-pressure applications. Due to its size and performance, this model is highly suitable for larger industrial and commercial ventilation applications.

Quality Guaranteed

Ruck Ventilatoren GmbH is a leading German manufacturer with years of expertise in producing high-quality fans. With over 300 professionals, they work daily on developing innovative solutions, with a strong focus on fire safety and energy efficiency. All fans comply with the latest ERP guidelines and the strictest standards. With a product from the AL series, you bring reliable technology into your home that performs when it matters most.

More Information

Brand	Ruck ventilatoren GmbH
Category	Flue Gas Axial Fan
GTIN	8719544322609
Manufacturer's item number	AL 1000 D84U F3 01 CFG
Article number	65171199

Specifications

Category code	35
Length	638 mm
Connection	Insert end
Housing material	Steel
Electrical connection	Terminals
Degree of protection (IP)	IPX4
Connection voltage	400 V
With thermal overload protection	Yes
Indirect drive	No
Air volume, unloaded	53610 m³/h
Suitable for frequency control	Yes
Pole-reversible	No
Suitable for transformer control	No
Suitable for electronic control	Yes
Max. air temperature	60 °C
Suitable for low-current control	No
Direct-current motor	No
2-speed motor	No
Duct diameter	1000 mm
