Good points

For supply and removal
Extruded aluminum

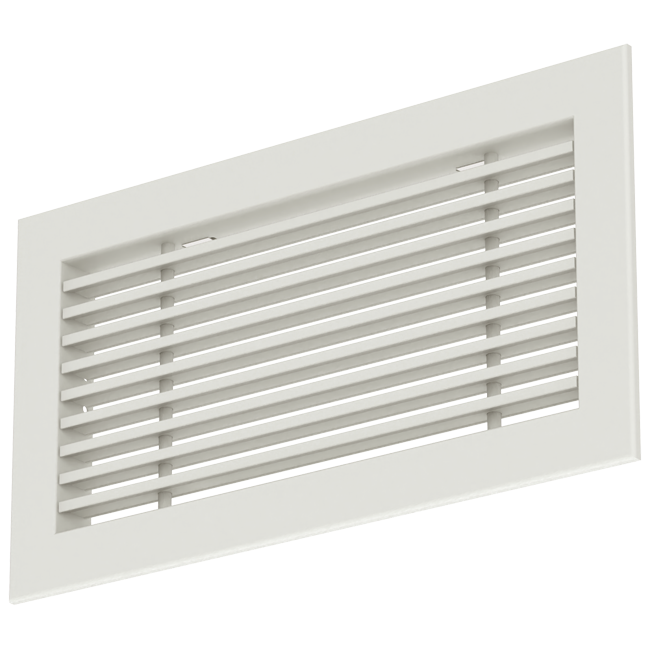

Aluminium Bar Grille – with Clamp Springs – 400x200 mm – RAL 9010

The Econox bar grille made of aluminium with horizontal slats is specially designed for the supply and exhaust of air in commercial indoor spaces such as offices, restaurants, and shops, and is suitable for wall mounting.

Practical Information

The bar grille has a width of 400 mm and a height of 200 mm. The mounting frame and the slats are made from extruded aluminium, which prevents deformation during installation, and subsequently powder coated in RAL 9010, 9016, or 9005.

Installation and Applications

The bar grille is supplied as standard with clamp springs and a mounting frame, allowing installation in the wall. Using the clamp springs, the grille can be easily clicked into the mounting frame before it is fitted into the wall. The bar grille can optionally be combined with a plenum (only when using clamp springs and without a mounting frame) to ensure uniform air distribution within the space.

Brand	Econox
Category	Bar grilles
GTIN	8719544329400
Manufacturer's item number	79000232
Article number	79000232

Specifications

Category code	59
Material	Aluminium
Surface protection	Lacquered
Nominal duct width	400 mm
Nominal duct height	200 mm
Vertical fins	Yes
Double row of ribs	No
Front width	432 mm
Front height	232 mm
With built-in window	Yes
Colour	White
RAL-number	9010
Air pattern, adjustable	Yes
Servomotor, adjustable	No
Thermostatically adjustable	No
Volume setting	None
Ball-protected	No
Built-in depth	45 mm
Mounting of internal parts/grille	Hidden clamp
Suitable for round air duct	No
Dimensions	400x200 mm
RAL Color	RAL 9010
