80 mm diameter SAFE elbow with a 90-degree bend

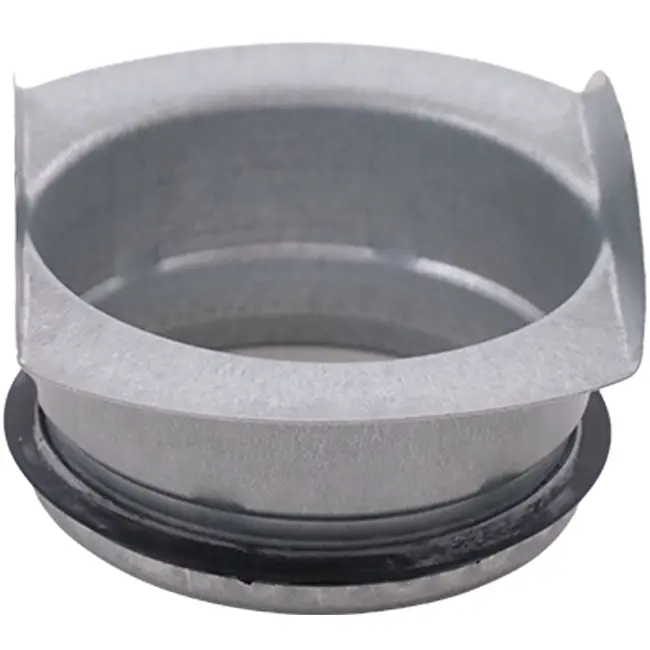

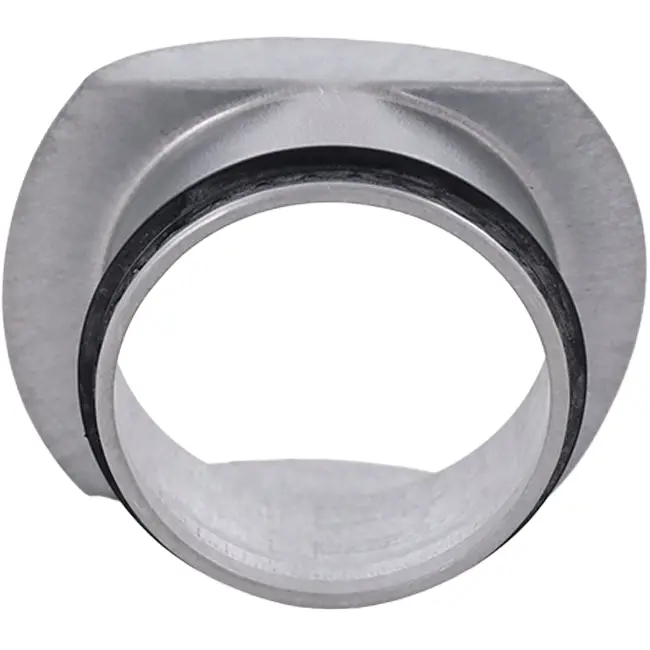

Branch piece with SAFE diameter 80 mm at 90 degrees

This branch piece provides the transition from a casting duct of 165 x 80 mm to a round duct of Ø 80 mm, at a 90-degree angle. It is used to create a branch from the casting duct, for example for a ventilation point in a floor or ceiling.

Benefits and features

• SAFE seal for an airtight connection, without the need for additional sealant or tape.
• Branch diameter of Ø 80 mm for a direct transition to a round duct.
• Compact dimensions (77 mm external, 50 mm high) fitting a casting duct of 80 mm height.
• Material thickness of 0.5 mm for a robust connection.

Installation, maintenance and applications

Thanks to the SAFE seal, the connection is immediately airtight once the branch piece is fitted onto the casting duct, without additional sealing steps. This branch piece is suitable for residential and commercial buildings where a round connection is needed on a rectangular casting duct.

With the SAFE seal and precise fit on the casting duct, this branch piece offers a quick and airtight solution for creating a Ø 80 mm connection.
