Good points
- Brand: Ruck
- 6 x N/O main contacts
- 400V, 3ph
- Surface mounting

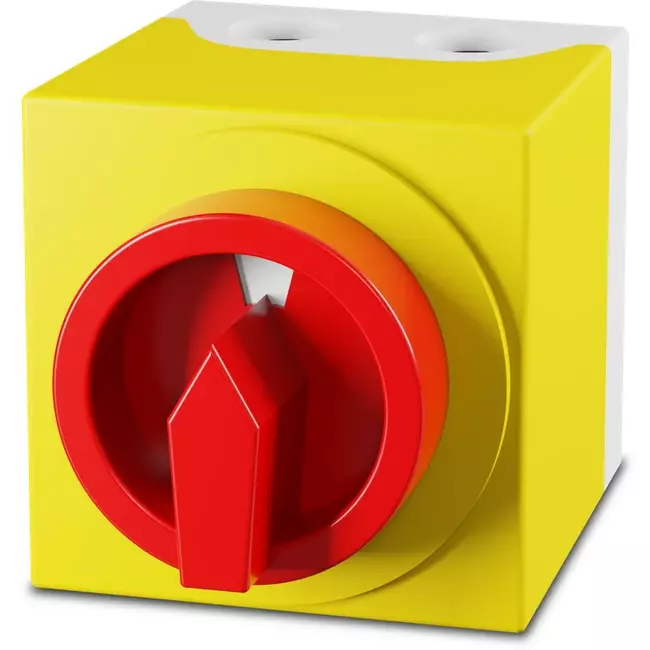

6-pole device switch Imax 25 A - GS 02
The Ruck GS 02 is a robust 6-pole device switch designed for the safe switching of electrical installations. This switch is suitable for a maximum voltage of 400 V (50/60 Hz) and has a switching capacity of 7.5 kW at 400 V 3~. The maximum current is 25 A. This model is suitable for surface mounting and has an IP 55 protection rating, making it suitable for use in demanding environments.
More technical information about this product can be found in the attachment under the "Documents" tab.
| Brand | Ruck ventilatoren GmbH |
| Category | Device Switches |
| GTIN | 4061199042437 |
| Manufacturer's item number | GS 02 |
| Article number | 65169671 |
Specifications
| Category code | 121 |
| Width | 68 mm |
| Height | 68 mm |
| Depth | 82 mm |
| Suitable for floor mounting | No |
| Suitable for intermediate mounting | No |
| Type of control element | Turn button |
| Suitable for distribution board installation | No |
| Version as reversing switch | No |
| Version as safety switch | Yes |
| Version as main switch | Yes |
| Version as emergency stop installation | No |
| Max. rated operation voltage Ue AC | 400 V |
| Version as maintenance-/service switch | Yes |
| Motor drive integrated | No |
| Voltage release optional | No |
| Motor drive optional | No |
| Number of poles | 6 |
| Number of switches | 1 |
| Suitable for front mounting centre | No |
| Colour control element | Red |
| Interlockable | Yes |
| Suitable for front mounting 4-hole | No |
| Degree of protection (IP), front side | IP55 |
| Type of electrical connection of main circuit | Screw connection |
| With pre-assembled cabling | No |
